About DN modifiers
DN modifiers are optional prefixes added to a user's DN that describe how the DN is to be used.
Voice DNs are entered on the User Information tab of the User Information form. Once a DN Modifier is set up, you can see it from the VS console if you request an Alias List dump.
Possible DN modifiers
The DN modifiers are as follows:
Modifier |
Description |
M |
DN with MWI that can be set by Voice Services. This refers to a DN that is used strictly for MWI, and which has no physical phone attached. This DN will not be used for transfers, call user, or to accept calls.  NoteOnly one M DN modifier can be assigned per user. This must be the first DN
entered in the Voice DN field on the User Information tab of the User Information form. This DN has MWI, but can't be used to call the user. To call the user, the user would need a designated DN on the User Information form without MWI. |
N |
DN with no MWI Note This must be the first DN entered in the Voice DN field on the User Information tab of the User Information form. The user can receive calls, but no MWI will be triggered. |
V |
Virtual DNs are used: � for individuals without phones � for a conference DN. Note There are no phones associated with virtual DNs and they can't be have MWI. Messages can be sent to a virtual DN: � from a voice menu using the Dial Direct or Dial Number functions if "verify user" is selected on the Voice Menu form � from a voice menu using the Leave Message function � by logging into FirstClass using a phone and composing a voice message to the virtual number. |
[Link]Top
Examples
Description of situation |
Enter in DN field of the User Info form |
An ordinary user in an office. � A user has only one DN (4358). � There is a physical phone that rings when the DN is called. � The phone has MWI enabled. |
4358 |
A reception desk where a single phone is set up with multiple lines assigned to multiple people. � A user has only one DN (4357). � There is a physical phone that rings when the DN is called. � The phone has no MWI.
Note MWI would only work for the entire phone, not individual lines, therefore, it would not be useful in this situation. |
N4357 |
A manager has an office, cell, and home phone he uses for business. His office phone has MWI enabled so that he knows a message is waiting as soon as he enters the office. � A user has 3 DNs (4356, 4165556985, 4165555454). �
There is a physical phone that rings when each DN is called. � The phone for the first DN has MWI enabled. |
M4356,4165556985,4165555454 |
A teacher sets up a virtual DN for a conference where parents can leave messages. She needs to know when a message is left, but does not want a phone to ring in her classroom. � A user has 2 DNs (4356, 4165555432).
� The phone for the first DN (4356) has MWI enabled. � There is no physical phone associated with the second DN (4165555432). |
M4356,V4185555432 |
A real estate agency uses a Voice Menu to leave messages to specific agents regarding appointments and sales. The agents call into the Voice Menu to retrieve their messages. � A Voice Menu is set up with a DN. � The Voice Menu has the Leave Message function enabled and custom greetings for each agent.
The validate user option is checked so the custom greetings play. � There is no dedicated phone for the DN. |
V2356 |

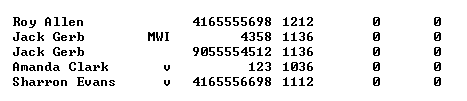

In the display alias list on the console, you can see all users' DNs and their DN modifiers.
In this example:
Roy Allen has one DN. It can be used to address messages and MWI can be set on the associated phone.
Jack Gerb has 2 DNs. 9057626002 can be directly called, but MWI will show calls on his DN 4358 phone.
Amanda Clark has a virtual DN. Voice messages can only be left for Amanda via Voice Menu > Direct Dial, Leave Message, or Call Number function or through FirstClass UM. She does not have MWI.
Sharron Evans has a virtual DN. Voice messages can only be left for Sharron via Voice Menu > Direct Dial, Leave Message, or Call Number function or through FirstClass UM. She does not have MWI.
| |
