About radio groups and buttons
A radio group containing radio buttons offers users a group of options from which they can only select one.
A radio group is a titled box that encloses related radio buttons. It is used to keep all radio buttons within the group mutually exclusive.
You can add a radio group before the radio buttons within it, so that the radio group box will not hide the radio buttons, or add it last, size it to fit the radio buttons, then choose Arrange > Draw Order > Send Field to Back.

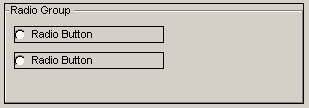

Radio group/buttons when drawn:
https://hirosue.ne.jp/images/FOV1-0000D49E/FOV1-00013FFB/FOV1-000101A7/FOV1-000101BF/FOV1-000101C5/FOV1-000101C7/000156C0-0119ED62.0/12222003_40702_43.gif?src=.PNG
Radio group/buttons when complete:
https://hirosue.ne.jp/images/FOV1-0000D49E/FOV1-00013FFB/FOV1-000101A7/FOV1-000101BF/FOV1-000101C5/FOV1-000101C7/000156C0-0119ED62.1/12222003_40830_44.gif?src=.PNG


Adding radio group boxes
1       Choose Fields > Buttons & Groups > Radio Group.
2       Add this field to the form.
3       Update the following fields on the Contents tab of the Field Attributes form as required:

Text
The title for the radio group.
Field control
How this field will control another field.
Only update this field if you want this behavior.


Adding radio buttons
1       Choose Fields > Buttons & Groups > Radio Button.
2       Add this field to the form.
3       Update the following fields on the Contents tab of the Field Attributes form as required:

Text
The label for this radio button.
Default
Makes this the default radio button in the group.
Icon ID
The resource ID of an icon, if you want to add an icon to the radio button.
If the button contains both text and an icon, the text is below the icon.
Value
The value to be sent to the server when this radio button is selected.
All radio buttons in a radio group must have unique values. If you accept the default values assigned when the radio buttons were created, these values are zero for the first radio button created, 1 for the second, and so on.

Using customized radio buttons
You can create customized icons for radio buttons just as you can for checkboxes.
