   NoteThis document describes the setup process for Dialogic voice and fax boards from the T1/E1 installation and configuration procedure.
1 Open the gcconfig file (\FCServer\vs\CONFIG\gcconfig.cf) using an ASCII text editor.

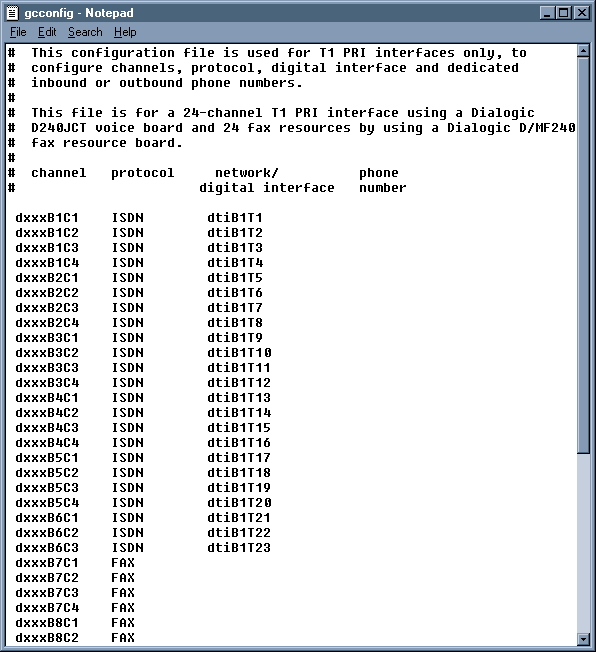

The file will look something like this:
 NoteEntries in this file are case sensitive.
2 The first column lists the virtual channels on the Dialogic boards.
Modify this column to match your system configuration. The pattern is as follows:
dxxxB1C1
dxxxB1C2
dxxxB1C3
dxxxB1C4
dxxxB2C1
to
dxxxB2C4
dxxxB3C1
etc.
• There can be only 4 virtual channels (c) per virtual board (b).
• If you have one 24-channel voice board (D240JCT) the list will continue to dxxxB6C3 (only 23 channels because of the D-channel).
• If you have one 30-channel voice board (E1 configurations - D300JCTE1120) the list will continue to dxxxB8C2.
• If you add another 24-channel voice board, or if you have one 48-channel voice board (D480JCT) instead of two 24s, the list will continue from dxxxB6C3 as follows:
dxxxB7C1
dxxxB7C2
to
dxxxB12C3 (remember there are only 23 voice channels)
• Fax resource boards work the same as voice boards and require one line per channel.
NoteEntries in this column must match the above case sensitivity.
3 The second column lists the protocol.
Modify this column to match your system configuration:
• All T1/E1 PRI channels are ISDN.
• Enter FAX for fax resources.
NoteEntries in this column must be upper case.
4 The third column lists the Network, or Digital Interface for each channel.
Modify this column to match your system configuration.
NoteThis column is only for T1 PRI interfaces. Do not enter anything for fax resources in this column.
The pattern is as follows:
dtiB1T1
dtiB1T2
dtiB1T3
sequentially to
dtiB1T23
(E1 continues to dtiB1T30)
For the second T1 PRI span continue:
dtiB2T1
dtiB2T2
sequentially to
dtiB2T23
(E1 continues to dtiB2T30)
NoteEntries in this column must match the above case sensitivity.
5 The right column is an optional column. If you have dedicated ports for incoming or outgoing numbers on your T1 PRI span, enter the number corresponding to the port.
|
