 About FCDS
If your organization uses an LDAP server to maintain users, you can take advantage of FirstClass Directory Services (FCDS) to share Directory maintenance with FirstClass. FCDS is an optional component of FirstClass that allows you to:
• administer the FirstClass Directory from an external LDAP V.3 server (LDAP server)
• use an LDAP V.3-enabled client (LDAP client) to see a structured, hierarchical (tree) view of the FirstClass Directory
• use an LDAP server to authenticate users when they try to log into FirstClass.
 NotesFCDS only runs on Windows machines. The FirstClass server can be running on any operating system.
We assume that you are familiar with LDAP concepts such as hierarchies and naming conventions. If you aren't, your organization's LDAP server administrator can help you. You will need to work closely with this administrator anyway, to ensure that the FirstClass environment is set up to work properly with the LDAP server.

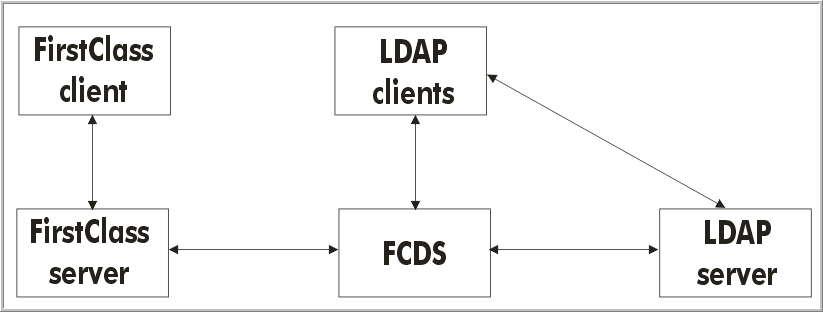

FCDS sits between the FirstClass server and the LDAP server. It can be installed on the same machine as the FirstClass server or a separate machine. FCDS can replicate information between the two servers, as in this diagram:
 If the machine on which FCDS is running stops, FCDS will simply pick up where it left off, after you restart the machine.
NoteIf this happens, we recommend that you do a full directory synchronization. Some external LDAP servers only replicate changes as they happen, so any updates to the FirstClass Directory attempted during the outage will be lost.
What FCDS supports
FCDS can work with:
• these LDAP V.3 servers:
• Sun Microsystems iPlanet Directory Server
• Microsoft Active Directory
• OpenLDAP (SLAPD) Directory Server
• LDAP V.3-enabled clients
• the following FirstClass Directory content:
• regular users
• remote users
• remote names
• public mail lists
• organizational units
• LDAP Data Interchange Format (LDIF) files.
The following objects are replicated:
LDAP FirstClass Directory
object class entry type
organizationalPerson regular/remote user
person remote name
organizationalUnit organizational unit
groupOfNames public mail list
groupOfUniqueNames public mail list
The following information is replicated:
LDAP FirstClass Directory
attribute entry information
surname last name
commonName first initials last
givenName first name
initials initials
telephoneNumber telephone
facsimileTelephoneNumber fax
postalAddress address
userPassword password
organizationalUnitName group (org. unit) name
mail alias
userid user ID
member mail list entry
uniqueIdentifier client ID
uniqueMember mail list entry
associatedDomain group (org. unit)
domain name
The following LDAP V.3 commands are supported:
• ADD
• DELETE
• MODIFY
• SEARCH.
The following restrictions apply to the SEARCH filter:
• only the following LDAP attributes are searchable:
• commonName
• givenName
• mail
• surname
• uniqueIdentifier
• userid
• all FCDS-supported object classes are searchable
• requested return attributes can be any FCDS-supported attributes
• the APPROXIMATE and EXTENSIBLE filters aren't supported
• the GTE and LTE filters for numeric values aren't supported.
The command CHANGE RDN isn't supported. This can create a problem in slave mode if the external LDAP server changes an entry's RDN. FCDS won't detect this change to an existing entry, and the two directories won't be in sync. To solve this problem, you can do one of the following:
• force a full directory synchronization
• avoid changing RDNs on the external LDAP server.
Instead, delete the entry, then create a new one with the updated RDN.
Restrictions on duplicate names
There are no restrictions for duplicate user names. If these names appear in different organizational units, they will appear in different parts of the tree view, making them more distinguishable than in the traditional FirstClass Directory view. Because FCDS maintains the tree view by user ID as well as by name, there can also be duplicate user names in the same organizational unit.
We don't recommend duplicate public mail list names. FCDS treats public mail lists differently from users, because public mail lists aren't located in the Directory, but rather in the Mail Lists folder. Duplicate public mail list names will only work in certain circumstances in FCDS' standalone mode.
|
